Details

---

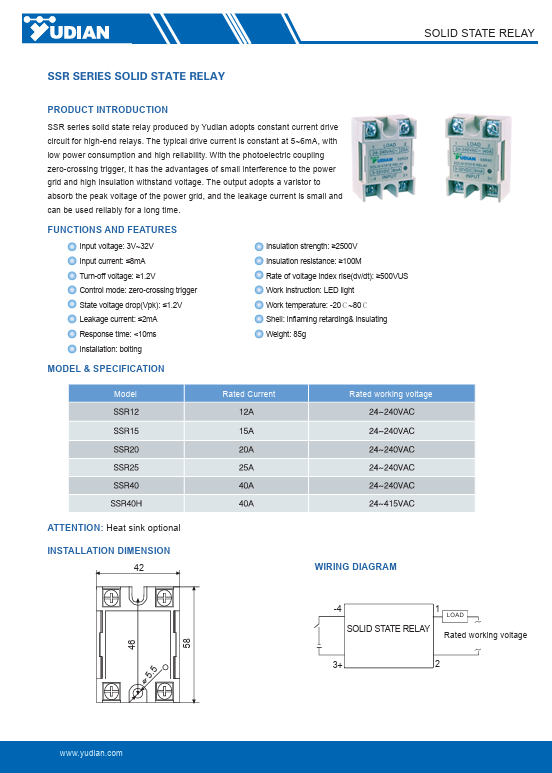

Solid State Relay
Rated Current: 15A, 25A,40A
Functions And Features

• Input voltage: 3V~32V
• Input current: <8mA
• Turn-off Voltage: >1.2V
• Control mode: zero-crossing trigger
• State voltage drop(Vpk): <1.2V
• Leakage current: <2mA
• Response time: <10ms
• Installation: bolting
• Insulation strength: >2500V
• Insulation resistance: >100M
• Rate of voltage index rise(dv/dt): >500VUS
• Work instruction: LED light
• Work temperature: -20℃~80℃
• Shell: inflaming retarding & insulating
• Weight: 85g
